155w Rigid Mono High Density Solar Panel FULL Kit – Nomadic Leisure
£450.00
155w Rigid Mono High Density Solar Panel Kit Rigid and High Density
The 155w Rigid Mono High Density Solar Panel Kit MHD roof and deck top kit is the right choice for high power demands when on the move. Wiring multiple MHD panels together, either in series or parallel, provides a very significant off grid power supply. Plus the panel’s smaller size enables a solar array to be created that exactly suits heavier power loads. The roof kit provides everything needed to professionally install the 155w Rigid Mono High Density Solar Panel Kit and comes complete with our custom made all black, low profile aero brackets. This kit will enhance the appearance of any roof top whilst keeping additional wind drag to the bare minimum and removing the potential for wind noise nuisance. Supplied as standard with our 20Ah PWM dual battery charge controller (which can be upgraded if required), cable feed gland, bonding agent, fuse, terminals and instructions.
Build your perfect roof and deck top kit starting with a premium solar panel
With two power ratings of 120w and 155w, our rigid MHD solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.
A charge controller should be used with the 120w and 155w rigid MHD solar panels to protect the battery from being overcharged and to prevent reverse current drain.
Put yourself in control
All our charge controllers are capable of charging 12V and 24V single or dual batteries.
The MPPT Pro charge controller increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery’s requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.
The MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the MPPT Pro and shows performance figures for a single or dual battery/batteries – very useful in a motorhome where the system can intelligently charge the leisure and starter batteries.
An optional Activity Monitor is also available with the MPPT Pro to provide all performance data on a LCD display.
Bespoke black aero brackets
Our custom made MHD aero fitting brackets mean the entire assembly has a combined depth of just 40mm as the panels hug the roof line much more closely than a normal solar panel. As well as the super smart black, aero brackets, the roof and deck top kits come with a 10Ah charge controller plus the opportunity to upgrade the charge controller to the MPPT Pro.
**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years
155w Rigid Mono High Density Solar Panel Kit Features
- Size: 1310 x 670 x 30mm
- Weight: 9.5Kg
- Watts Per Day: 1007W
- Amp Hours Per Day (A): 47.52A
- Charge Controller: 15 or 20Ah
- Nominal Voltage – Vmp (VDC): 22.9
- Nominal Current – IMP (A): 7.31
- Voc (V): 27.5
- Short Circuit Current – Isc(A): 6.77
** Watts and Amp hours/day based on six hours of average daily peak sunlight hours.
155w Rigid Mono High Density Solar Panel Kit Specifications

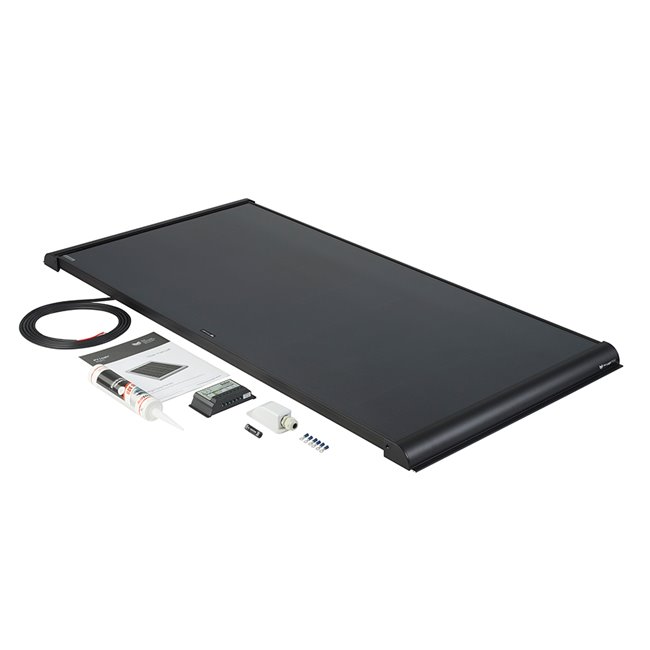

Contents (panels kits)
1 x 155w MHD solar panel
1 x 20Ah charge controller (or upgrade to 15Ah MPPT charge controller)
1 x aero fitting kit
1 x 4m cable bundle
1 x cable feed gland
1 x tube bonding agent
1 x pack fuses, ring terminals etc
1 x fitting instructions
10 year module warranty
20 year cell warranty**
Please note
**Cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e the cell degradation rate will be no greater than 20% in 20 years
Specification: 155w Rigid Mono High Density Solar Panel FULL Kit – Nomadic Leisure
