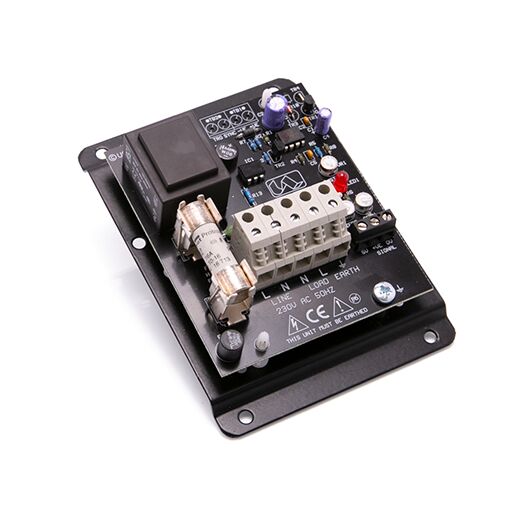

This 1KW ‘Mini Stack’ is available for single phase, 230V applications. Other voltage supplies are also available. The unit can control loads of up to 4A, with a number of signal control options. The controllers are assembled to suit the final load, operating in phase angle mode. The controller comes complete with appropriately rated High Speed semiconductor fuse and an integral heatsink.
APPLICATIONS Suitable for heaters, ovens, dryers, air curtains, hot plates, heating and ventilation. SCR solid state phase angle power handing gives smooth proportional control of all types of industrial processes, e.g. furnaces, electroplating, controlled rectifiers, transformers etc.
FEATURES
Wide range of Control Signal Options.
Convection Air-Cooled heatsink
Phase angle control with Soft-Start (0 to 20 sec. delay)
SCR-type (Triac protection) fuse fitted
Installation mounting options:
Metal enclosure
DIN-RAIL mounting c/w Perspex cover
Back-plate mounting c/w Perspex cover
Specification: 4A 230VAC Phase Angle Power Regulator
| Store | |
|---|---|
| Brand | United Automation |
| Availability | In Stock |
| Condition | New |
