DDX v3 Direct Drive eXtruder – For Creality – Bondtech
£99.99
The Bondtech DDX Direct Drive eXtruder for Creality 3D printers is an upgrade kit that replaces the original bowden extruder with a direct drive extruder setup. It is a high-performance Dual Drive extruder based on the BMG Bondtech Mini Geared.
Using a bed probe with DDX
The DDX was designed to allow space for the bed probe to be attached to the x-carriage. In models where there is no space to attach a bed probe like the BLtouch, to the X-carriage, a mount can printed and attached to the right hand side of the DDX.

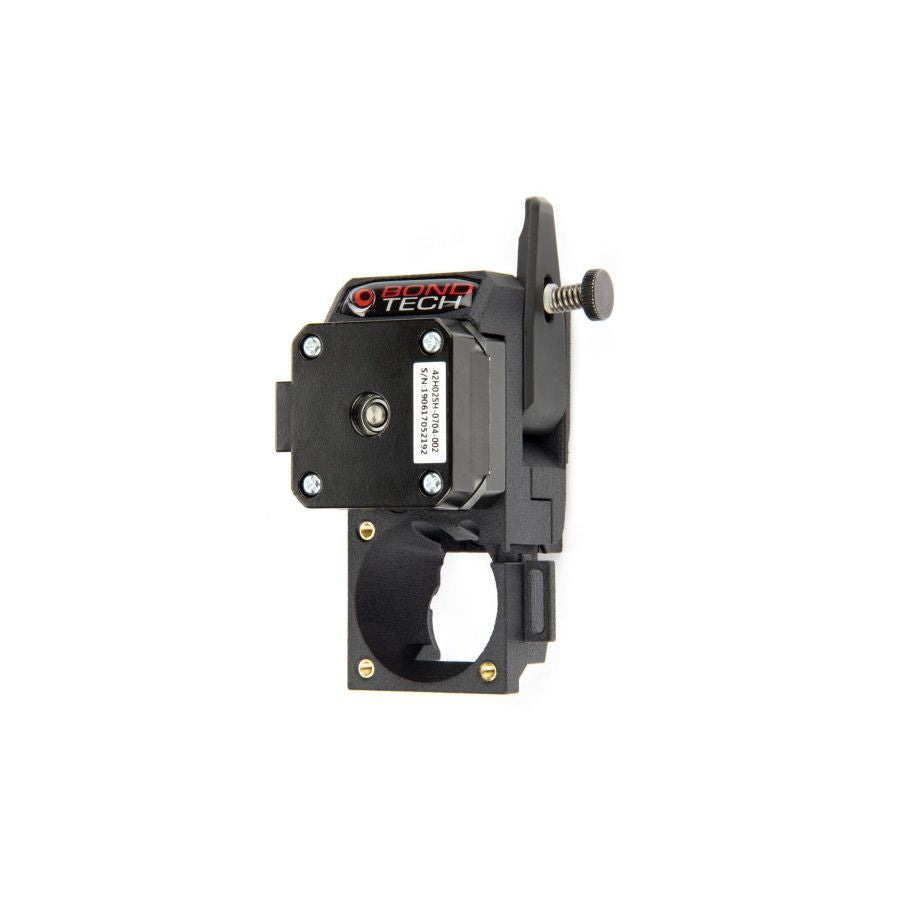

Bondtech DDX Direct Drive eXtruder
This Direct Drive eXtruder from Bondtech is a high performance, high reliability 1,75mm Dual Drive extruder for Creality 3D printers, based on our very popular BMG. Bondtech’s unique Dual-Drive technology combined with either the factory hotend or for even better performance the industry leading hotends Copperhead™ or Mosquito™ from SliceEngineering gives you a direct drive extruder with problems free material feeding and enables the use of a wider range of materials. The housing parts are printed with PA12 (polyamide) for maximum strength and precision using industrial grade SLS technology.
Make your 3D printer even better
Bondtech DDX Direct Drive eXtruder for Creality is designed to give the user more options – different materials; higher flow and/or wider nozzles; thinner layers – and achieve a higher print quality. The DDX is based on the BMG Bondtech Mini Geared extruder featuring our unique Dual-Drive technology. The DDX housing design provides an effective Hot-End cooling. With the 3:1 gearing ratio, high resolution prints with small nozzles or high flow prints with bigger nozzles can be achieved.
Easy To Setup
For ease of setup the kit is attached to the carriage with only 2 screws.
Included in this set:
- 1x DDX v3 Extruder
- 1x Nema17 Pancake stepper motor
- 1x Thumbscrew Assembly
- 1x 70cm Stepper motor extension cable
- 1x 60cm PTFE tube
- 1x 7cm Capricorn tube
- 4x Zip-ties
- 3x M3x12mm screw
- 2x M3x20mm screw
- 1x M3x10mm button head screw
Compatible with:
- Creality Ender-3 (Pro)
- Creality Ender-3 v2
- Creality Ender-5 (Pro)
- Creality Ender-6
- Creality CR-10S
- Creality CR-10 (Mini)
- Creality CR-10S4
- Creality CR-10S5
- Creality CR-10 v2/v3
- Creality CR-10S Pro (v2)
- Creality CR-10 Max (your z-height will be limited to in between 430mm and 455 mm, due to the higher position of the push-fit on the extruder)
Specification: DDX v3 Direct Drive eXtruder – For Creality – Bondtech
| Store Name | |
|---|---|
| Brand | Bondtech |
| Availability | In Stock |
