F-One Escape Carbon 530 Foil – The Foiling Collective
£925.00
The Escape foil is nothing less than a master piece of hydrodynamic refinement and composite craftsmanship.
Amazing Glide & Speed
Control at high speed
Monobloc: 1 pc Carbon Construction
Package Includes:
Escape Carbon 530 foil plane (front wing, fuselage, stabilizer)
Optional extra: Aluminium or Carbon Mast (top plate and mast foot are required with the Aluminium mast)
EVA cover

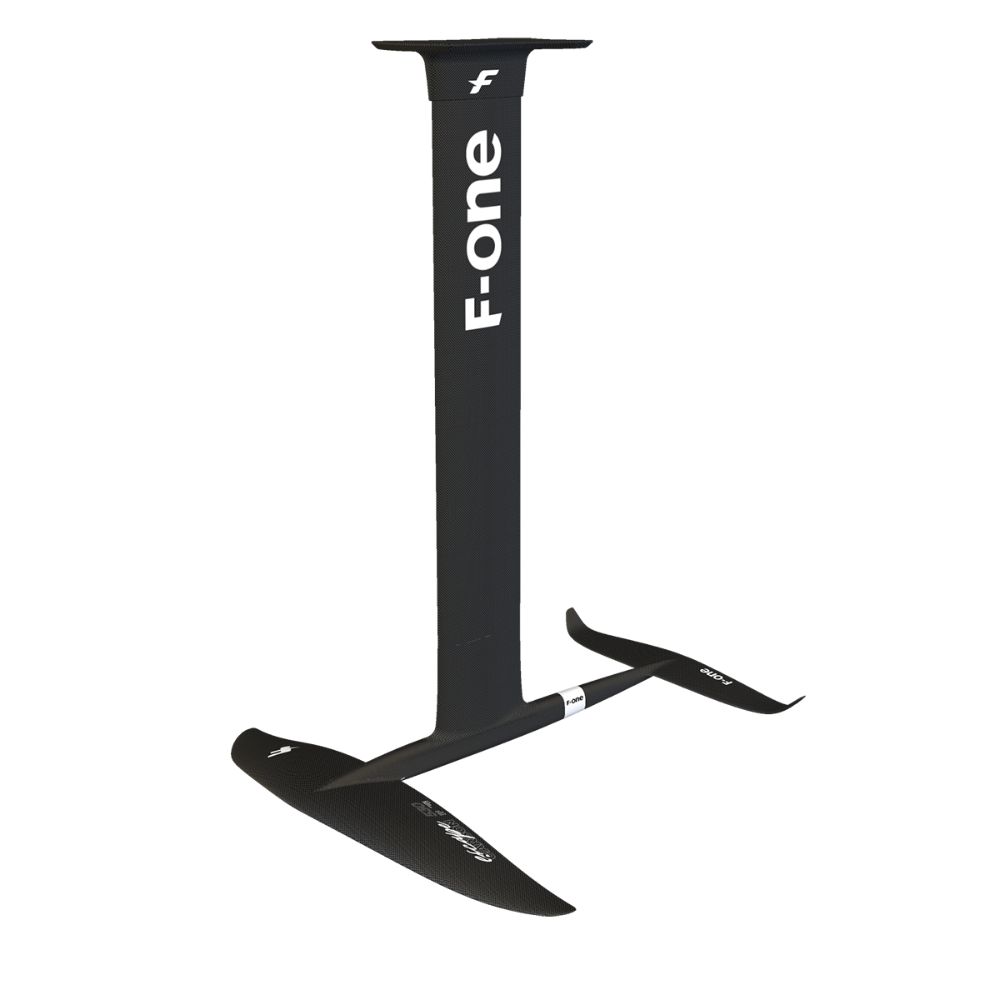

The ESCAPE CARBON 530 Hydrofoil
Designed to foil at high speed with full control whatever the conditions, the Escape 530 offers enough performances to go racing but its “raison d’être” is first and foremost to provide the most exhilarating ride on the water. Light or strong wind, racing or carving the Escape is a playful, nimble and enjoyable hydrofoil which delivers an amazing glide with a terrific speed potential and upmost control.
Such a level of performance is only possible through the use of a 1-piece monobloc construction where the entire plane (front wing, fuselage, stabilizer) is molded in one-shot out of pre-preg carbon with great craftsmanship. The end result is a piece of carbon composite with the best possible strength and stiffness to make sure you are always in control.
Specification
Area: 530 cm²
Span: 58 cm
Aspect Ratio: 6.3
Weight: 1,06 kg (wing only)
Technology
TITAN CONNECTION
The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions. Its format is compact which is hydrodynamically friendly and very easy to use, assemble and disassemble.
PRE-PREG
With Pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer; this guarantees a perfect ratio between epoxy and carbon, and represents the highest quality process.
Quality control is much better and so is the working environment for the people building our foils. Pre-Preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.
MONOBLOC
Having a stiff and solid assembly between all the parts of the foil, is key to making it perform at its best as well as easy to handle.
The connection of the front wing with the fuselage is highly stressed and loaded, it is one of the critical area of the assembly in terms of structures. The MONOBLOC wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.The structural fibers of the fuselage are spread into the wing to achieve the most natural, sound and light connection.
It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders input. When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.
