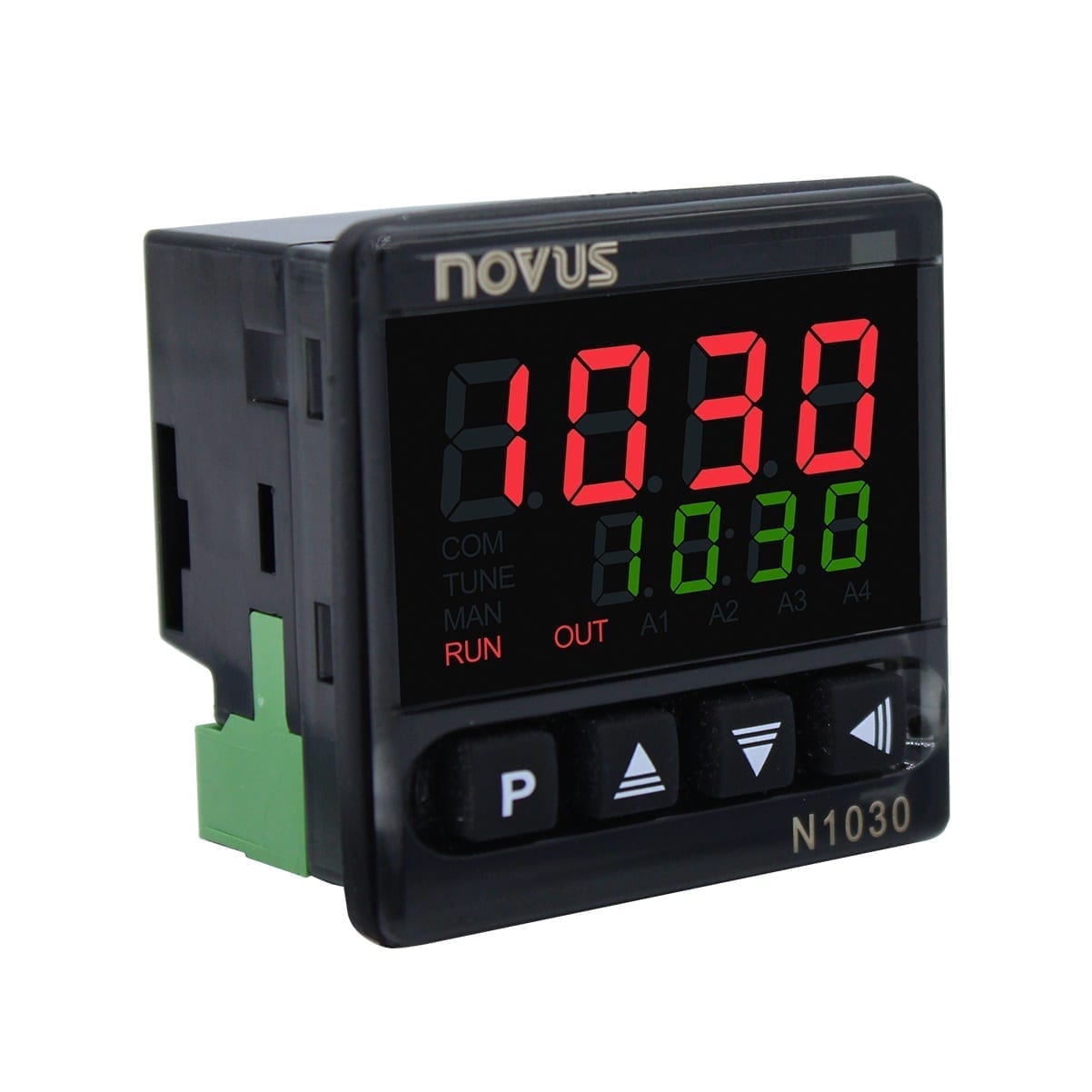

N1030T PID Temperature Controller – Timer – Under Control LTD
£47.00
N1030T
PID Controller/Timer
N1030T is a temperature controller with a timer feature and high-performance PID algorithm, ideal for use in control panels, manufacturers machines and equipment. They have a compact design, with only 35 mm depth. The compact size and the detachable connector provide ease of setup on thinner profile panels, optimizing space and reducing costs. It has two outputs always available in which both can be configured as control, alarm or timer output.
The N1030T also has two independent timers and several operation modes that redirect to one of the controllers outputs. It accepts Pt100 or thermocouples J/K/T sensor inputs and has a quick coupling electric connection that reduces the installation setup time.
The N1030T is an excellent process controller where reliability and precision are demanded, offered in a cost-effective PID controller.
– Single Loop PID and ON/OFF controller
– PID auto-tuning
– Two independent outputs available
– Dual relay output or 1 pulse and 1 relay versions
– Six alarm functions: LO, HI, differential, differential LO, differential HI, sensor break
– Initial blocking alarm function
– Adjustable alarm hysteresis
– Thermocouples J, K, T and Pt100 input
– Temperature unit °C or °F
– Decimal place indication
– Configurable setpoints limits
– Password protected configuration
– Increasing or decreasing timer counters
– Timer time base on seconds or minutes
– Adjustable timer up to 99:59 (mm:ss or hh:mm)
– Timer trigger by setpoint or F key
– Control output linked to timer can turn on or turn off at end of timer interval
– Factory configuration parameters recovery
– Dual red and green four-digit display
– Front panel material PC UL94 V-2
– Enclosure material: PC UL94 V-2
– Front panel protection: IP65
– Operating environment: 0 to 60 ºC, 20 to 80 % RH
– Dimensions: 48 x 48 x 35 mm, 1/16 DIN
– Power supply: 100 to 240 Vac/dc or 12 to 24 Vdc / 24 Vdc/ac
– Detachable terminal block
