Wastewater Pump Station BD-800GW – single rigged pump – 10m head pump – Basement & Drainage Solutions
£1,422.86
Wastewater Pump Station BD-800GW:
Applications for the wastewater pump station BD-800GW:
The product offers a solution in situations where normal gravity flow to drain is not achievable
It works by collecting and transferring the wastewater from washing machines, dishwashers, sinks, and showers, excluding toilet waste.
The treated, processed water from a treatment plant can be collected and transferred to a watercourse or designed soakaway system.
Overview:
Typical Conditions Where A Pump Station is Not Required:
Normal gravity flow to drain is achievable because of the short distance and a downward slope.
External pipework will be visible when looking at where the wastewater flows through a wall to a drain.
The length of pipework will be short, with a downward slope to aid gravity flow.
Property Extensions:
Property extensions, such as a granny flat, may involve a new sink, shower, or bath. However, the wastewater will not flow by gravity because of practical difficulties with routing outgoing pipework. In these situations, a wastewater pump station BD-800GW can provide a solution. The pump station is designed to collect the wastewater close to the utility and then transfer it by pump to a suitable final discharge point.
Wastewater Pump Station BD-800GW includes:

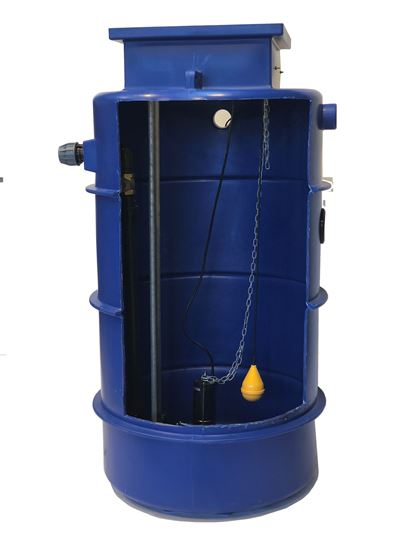

Chamber:
The 800-litre ribbed chamber provides high storage capacity because it is beneficial should power be lost to the pump for a short period of time.
Dimensions = 1000mm deep x 1000mm diameter and so the installer can prepare the ground before arrival.
Pedestrian rated lid because of foot traffic in its location.
Ready-built because it simplifies the installation on site
The internal discharge pipework kit is in a position to simplify installation at the site
The pipework kit Includes a union for simple pump disconnect when needed
Pump:
Submersible vortex pumps complete with non-return valve
Maximum lift 6m or 10m options.
Auto activated float switch
Year manufacturers warranty
Electrical Information:
220 / 240 volts because this is standard for the UK
10m power cable with standard UK plug because it provides some flexibility at the installation stage.
PRICE FOR THE WASTEWATER PUMP STATION BD_800GW INCLUDES VAT AND DELIVERY UK MAINLAND
Wastewater Pump Station BD-800GW – single rigged pump – 10m head pump – Basement & Drainage Solutions
Specification: Wastewater Pump Station BD-800GW – single rigged pump – 10m head pump – Basement & Drainage Solutions
| Store Name | |
|---|---|
| Brand | Basement & Drainage Solutions |
| Condition | New |
| Availability | In Stock |
